8 Inch Class 150 WCB Trunnion Mounted Ball Valve Flange End

Product Description

The Trunnion Mounted ball valve adopts the advanced spring preloaded floating valve seat assembly,suitable for

Class150~Class2500 PN16~PN160 pipelines, used to cut off or connect the medium in the pipeline.

Trunnion Mounted Ball Valve Content

Design Feature

Upstream Seal Two-way Valve

Have two seats on both sides. Each seat has springs loaded and make seat insert contact the ball surface for sealing.

Therefore this type of valve is bi-directional sealing and Installation direction is not restricted.

Fire-Safe Design API 607/API 6FA

In case of accidental fire or abnormal heating that softens and burns the non-metallic valve seat, it is specially tested.

The broad-seat supported metal sealing surface can prevent internal leakage under the action of spring load.Meanwhile,

in the middle flange, the upper and lower parts of the adjusting stem will form metal surface contact, which can also

prevent upper and external leakage.

Stem and Seat Emergency Sealant Injection

The seat ring and the valve stem have a special grease injection valve. In case of the leakage,

the grease will be injected to the valve ball surface and stem room to create a temporary sealing.

Double Block and Bleed

The trapped cavity pressure can bleed out by vent fitting or drain plug when the valve is in

fully open or fully closed position. The fluid is intercepted by seats of up and down stream

side. So the stem packing or O-ring may be replaced under working pressure. Each seat works

independently assuring tight seal against ball on both upstream and downstream side.

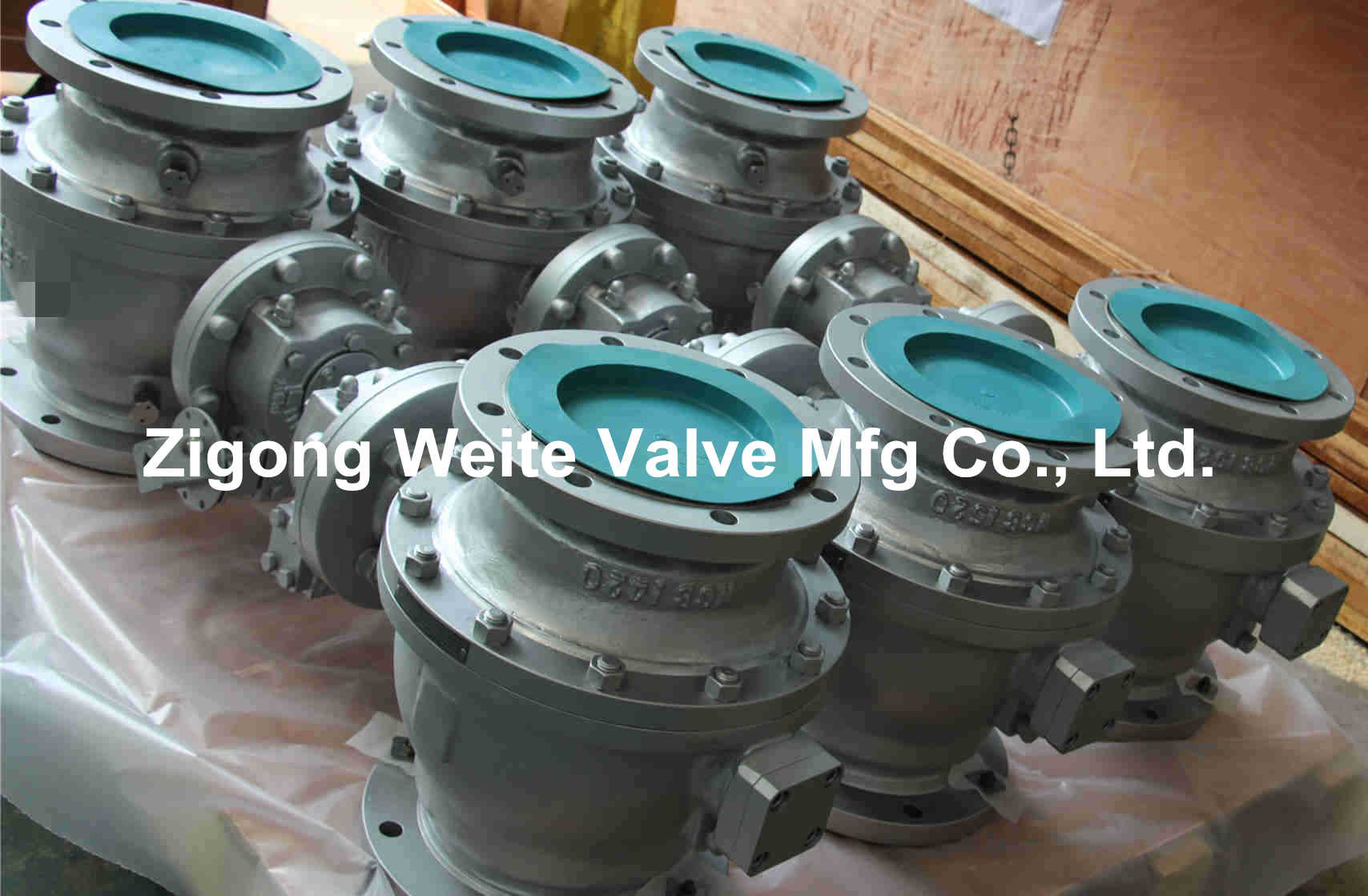

8'' 150LB WCB Trunnion Mounted Ball Valve Details

About Company

Our company has passed API and TS certification.We mainly produces valves of ANSI, DIN, and other standards. Products are widely

used in water, oil, natural gas, petroleum, chemical, urban pipe network and other fields.

Workshop
Valves Display Area,Radial Drilling Lathe,Finish Machining Workshop
Pressure Test and Assembly Workshop,Pressure Test Area
Painting and Finished Products

Packaging

FAQ:

Q1: Are you a Manufacture or trading company?

A: We are a professional Manufacture factory, we have been in Valve field more than 15 years. Our factory

is located inZigong City, Sichuan Province,China.

Q2: Can you provide OEM and customized product?

A: Yes, we can.

Q3: Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.

Zigong Weite Valve Mfg Co., Ltd. was established in 2007,and located in Zigong Aviation Industrial Park, Gongjing District,Zigong City, Sichuan Province. It has a plant area of 15,400 m² and is equipped with a technology research and development center.The company has 137 employees, 10 engineers,and 17 technicians,12 qualified welders with certificate,11 non-destructive testingpersonnel have level Ⅱ certificate(RT, UT, MT, PT).

This is a manufacturer specializing in the production of valves, Selling Various ball valves (types of floating, fixed, top mounted, all welded,metal seal HPHT,V type, multi-way etc.) made of carbon steel, low temperature steel,stainless steel, alloy. we can provide range DN 1/2”—40”(DN15-1000mm),PN Class 150 -- Class2500 (1MPa - 42MPa).Working temperature -196°C~680°C .Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM and ODM.

Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM & ODM.Most important that we strictly enforces the quality control of ISO9001 ,APIQ1, API6D, ASME, B16.34, API608, BS5351, ISO17292, DIN etc.

Our products can widely use in the industry of Petroleum, Natural gas,Chemical, Light, Ore pulp, Electrical, Food, Metallurgy,Coal-to-liquids, long distance pipeline and various industrial facilities.
