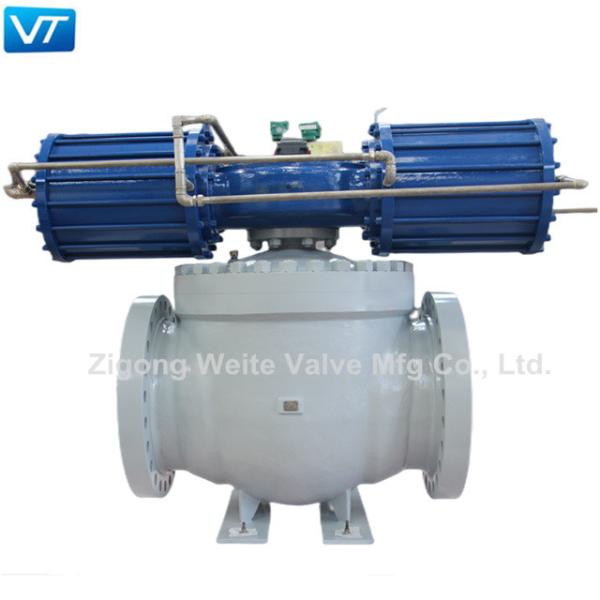

24" 600LB Top Entry Trunnion Mounted Ball Valve Carbon Steel WCB Ball Valve

Ask Lasest Price
Brand Name :	VT
Certification :	API 6D, API 607,TS, ISO 9001,
Price :	negotiated
Payment Terms :	L/C, T/T
Supply Ability :	10000 Set Per Year

Add to Cart

Product Details
Company Profile

24" 600LB Top Entry Trunnion Mounted Ball Valve Carbon Steel WCB Ball Valve

24'' 600LB Top Entry Ball Valve Carbon Steel Valve Body Material WCB

Product Description

Top Entry Ball Valve can be used as shut-off valve,with the characteristics of safety and reliability.

Product Range

Size Range	NPS 2 to NPS 30
Class Range	50LB to 2500LB
End Connection	RF,RTJ flange,butt-welded,thread,socket welded
Operation	Manual,Pneumatic,Electric,Gas-liquid interaction etc.

Working Principle

The bottom of the ball valve has a ball supported by a trunnion. When the hole is aligned with the conduit,

the valve is open, allowing fluid to flow in. The rod starts to go down and it rotates 90° due to the channel

machined on it, causing the ball to rotate the same. Then some channels are machined straight and the stems

cannot go straight down.

In this case, due to the angled surface, the stem drives the ball to the bottom trunnion and seat. The ball hits the

seat only in this position, there is no pressure in the rest of the movement.

Company Profile

We have a 15,400 m² workshop and a technology research and development center.The company has 137 employees,

10 engineers, and 17 technicians,12 qualified welders with certificate, 11 non-destructive testing personnel have level Ⅱ

certificate(RT, UT, MT, PT).

24" 600LB Top Entry Trunnion Mounted Ball Valve Carbon Steel WCB Ball Valve

Factory Equipment

Valves Display Area
Radial Drilling Lathe
Finish Machining Workshop
Pressure Test and Assembly Workshop
Pressure Test Area
Painting and Finished Products
