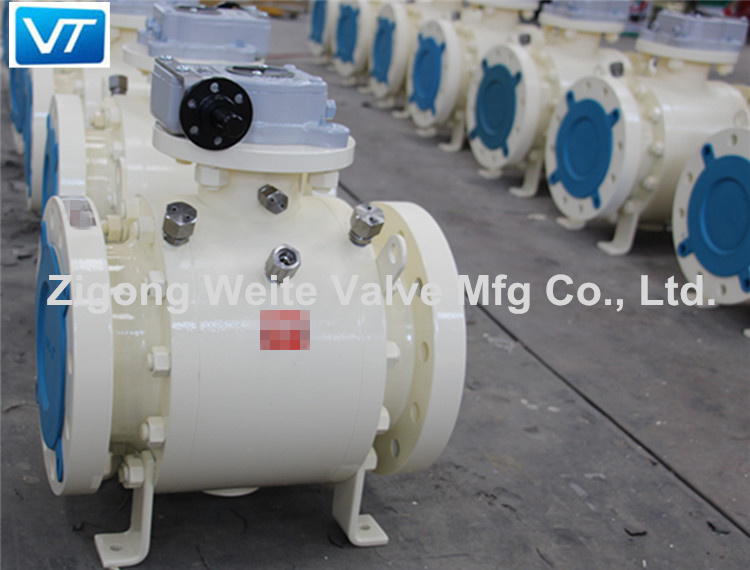

API Gear Box Operated Ball Valve For Water,Air,Gas,Oil,Liquid

Design and Manufacturing Specification

Material Selection

Feature

Blow Out Proof Stem Construction

The lower end of stem is terraced and installed from inside of the valve body. This construction

insures a blow out proof stem and metal to metal seal in case of fire.

Anti-static Design

During operating, The special antistatic device can discharge the static electricity accumulated

on the ball while the valve is opening and closing.

Middle Flange with No Leakage Design

Body and Cap connection are sealed by gaskets. To prevent leakage from fire, high temperature

or vibrations, metal to metal sealing between the body and cap is good effect.

Locking Device

The valve is equipped with locking holes for the lever in the full open and full closed position to

prevent accidental while opening and closing.

Fire-Safe Design:API607/API6FA

Each possible leaking part between Ball and Body, Middle flange, Stem and body is designed for

metal to metal contaction which conforms to the fire-proof requirements of API 6FA and API 607.

In case of extreme fire-proof conditions, the packing and gasket material made of flexible graphite

can insure zero leakage.

Wrench with Valve Open/Close Indication

When the handle(lever) is on the same horizontal line with the pipe, this indicates the valve is

open. When the handle(lever)is on the vertical line with the pipe, this indicates the valve is closed.

Advanced and Exclusive Seat Design

With many years of Gear Operated Ball Valve manufacturing experience and advanced technology from abroad,

the cone sealing surface developed, makes the more reliable sealing. Our designs are available

with various types of seat materials can offer low friction and low operational torque.

Company Profile

Zigong Weite Valve Mfg Co., Ltd. was established in 2007,which is a manufacturer

specializing in the production of valves, Selling Various ball valves(types of floating, fixed, top mounted, all welded, metal seal HPHT,

V type, multi-way etc.) made of carbon steel, low temperature steel,stainless steel, alloy. we can provide range DN 1/2”—40”(DN15-1000mm),

PN Class 150 -- Class2500 (1MPa - 42MPa).Working temperature -196°C~680°C.

FAQ:

Q: Why Choose Weite Valve?

A: 1. We are manufactory, we can provide cost effective products.

2. We have 15years experience in valve industrial, both our sales team and technical engineers

can provide you professional solution.

Zigong Weite Valve Mfg Co., Ltd. was established in 2007,and located in Zigong Aviation Industrial Park, Gongjing District,Zigong City, Sichuan Province. It has a plant area of 15,400 m² and is equipped with a technology research and development center.The company has 137 employees, 10 engineers,and 17 technicians,12 qualified welders with certificate,11 non-destructive testingpersonnel have level Ⅱ certificate(RT, UT, MT, PT).

This is a manufacturer specializing in the production of valves, Selling Various ball valves (types of floating, fixed, top mounted, all welded,metal seal HPHT,V type, multi-way etc.) made of carbon steel, low temperature steel,stainless steel, alloy. we can provide range DN 1/2”—40”(DN15-1000mm),PN Class 150 -- Class2500 (1MPa - 42MPa).Working temperature -196°C~680°C .Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM and ODM.

Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM & ODM.Most important that we strictly enforces the quality control of ISO9001 ,APIQ1, API6D, ASME, B16.34, API608, BS5351, ISO17292, DIN etc.

Our products can widely use in the industry of Petroleum, Natural gas,Chemical, Light, Ore pulp, Electrical, Food, Metallurgy,Coal-to-liquids, long distance pipeline and various industrial facilities.
