    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation

    Ask Lasest Price
    Brand Name : VT
    Certification : API 6D, API 607, ISO 9001
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Year
    • Product Details
    • Company Profile

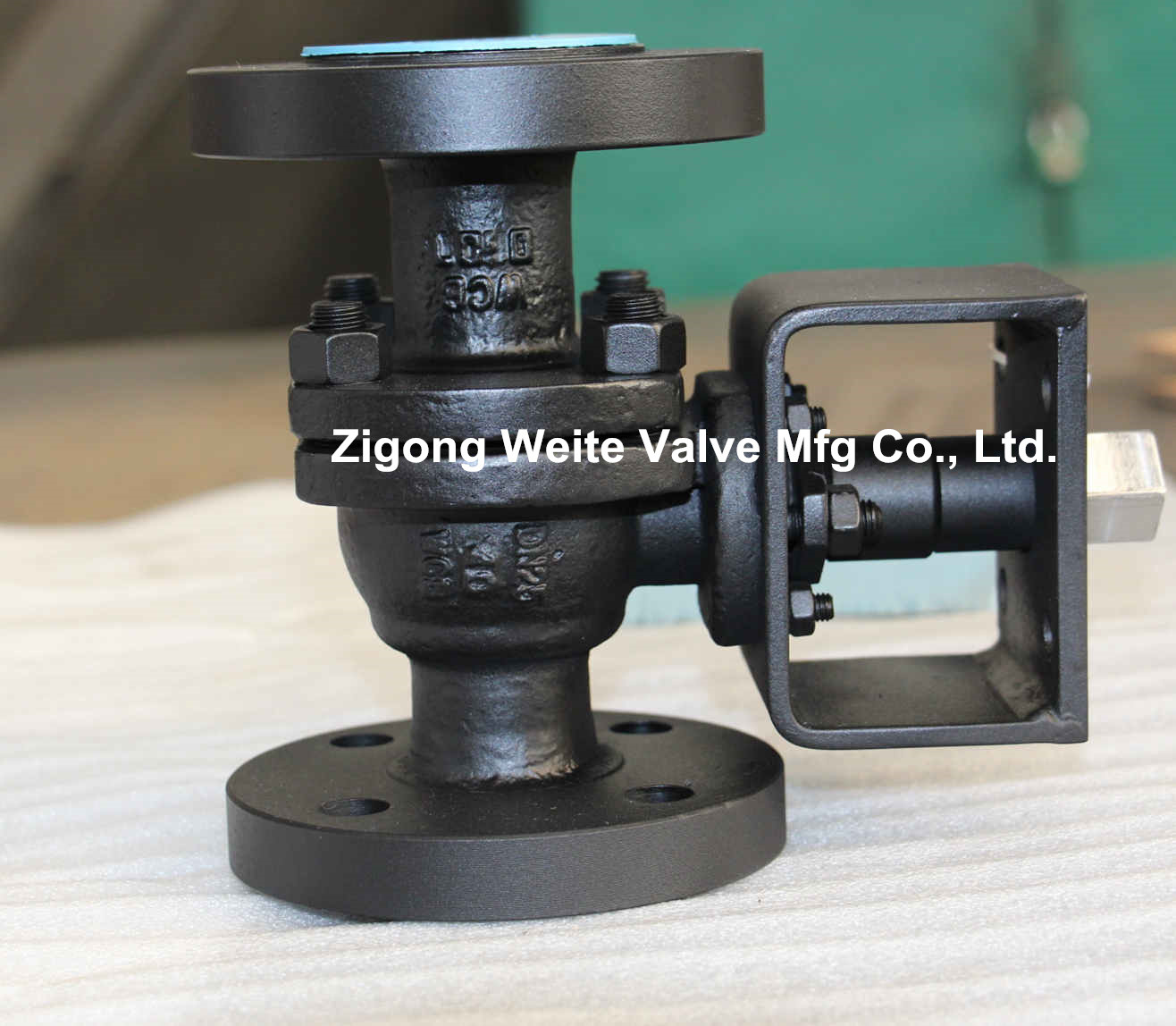

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation

    DN 25 Floating Ball Valve High Small Size Blow Out Proof Stem


    Product Description

    The floating ball valve uses a ball as the structure to close the cross-section of the pipe and prevent the flow of the fluid.

    Now,the main feature of a floating ball valve is that the ball has no structure to support it, so it stays suspended in the fluid

    and in place by valve seats.


    Design standardAPI6D,ASME B16.34,BS5351,ISO17292,DIN
    Connection endsRF,RTJ flange,butt-welded,thread,socket welded
    Nominal diameterDN25
    MaterialsWCB
    Mediumoxygen, hydrogen peroxide, methane and ethylene

    Feature


    Floating Ball Valve Blow Out Proof Stem Construction

    Anti-static Design

    Middle Flange with No Leakage Design

    Locking Device

    Fire-Safe Design:API607/API6FA

    Wrench with Valve Open/Close Indication


    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation


    About Weite

    Our company has passed API and TS certification.We mainly produces valves of ANSI, DIN, and other standards.

    Products are widely used in water, oil, natural gas, petroleum, chemical, urban pipe network and other fields.

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever OperationDN 25 Floating Gas Pipeline Ball Valve Class 600 Lever OperationDN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation


    Factory Equipment

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation


    Package

    DN 25 Floating Gas Pipeline Ball Valve Class 600 Lever OperationDN 25 Floating Gas Pipeline Ball Valve Class 600 Lever Operation
