Big Size Carbon Steel Flanged Ball Valve 16'' 600LB Valve Body WCC

Product Specification

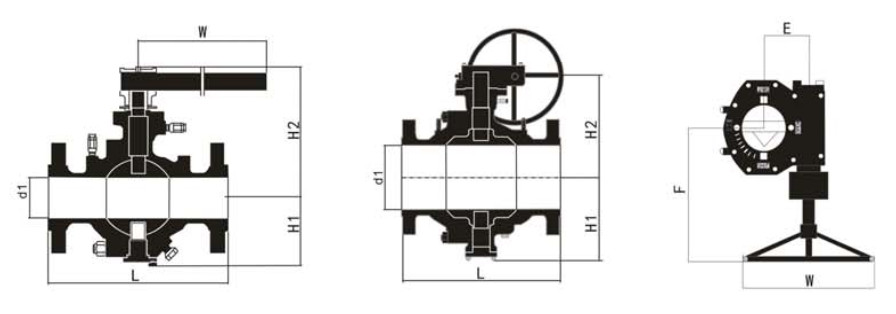

Trunnion Ball Valve Dimension

Class 600 Dimension Chart

Feature

Upstream Seal Two-way Valve

The trunnion mounted ball valve adopts the advanced spring preloaded floating seat assembly and the design

mechanism of the upstream seal, so that the valve can be well sealed under low pressure, high pressure and

vacuum. Each valve has two valve seats, which can be sealed in both directions, so there is no restriction on

the installation direction, no matter which end of the valves can be used as the upstream end, it is a two-way valve.

Fireproof Design

When an accidental fire or abnormal temperature rise causes the non-metallic valve seat to soften

and burn, the specially designed valve seat supporting metal sealing surface forms metal-to-metal

contact with the ball under the action of the spring load, which can play an instantaneous sealing effect,

conforming to API6FA Or the provisions of API607.

Stem and Seat Emergency Sealant Injection

The seat ring and the valve stem have a special grease injection valve. In case of the leakage,

the grease will be injected to the valve ball surface and stem room to create a temporary sealing.

Double Block and Bleed

The trapped cavity pressure can bleed out by vent fitting or drain plug when the valve is in

fully open or fully closed position. The fluid is intercepted by seats of up and down stream

side. So the stem packing or O-ring may be replaced under working pressure. Each seat works

independently assuring tight seal against ball on both upstream and downstream side.

Shipping

Zigong Weite Valve Mfg Co., Ltd. was established in 2007,and located in Zigong Aviation Industrial Park, Gongjing District,Zigong City, Sichuan Province. It has a plant area of 15,400 m² and is equipped with a technology research and development center.The company has 137 employees, 10 engineers,and 17 technicians,12 qualified welders with certificate,11 non-destructive testingpersonnel have level Ⅱ certificate(RT, UT, MT, PT).

This is a manufacturer specializing in the production of valves, Selling Various ball valves (types of floating, fixed, top mounted, all welded,metal seal HPHT,V type, multi-way etc.) made of carbon steel, low temperature steel,stainless steel, alloy. we can provide range DN 1/2”—40”(DN15-1000mm),PN Class 150 -- Class2500 (1MPa - 42MPa).Working temperature -196°C~680°C .Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM and ODM.

Our R&D team consists of experienced superior valve experts and engineers that can according to customers’ requirement for OEM & ODM.Most important that we strictly enforces the quality control of ISO9001 ,APIQ1, API6D, ASME, B16.34, API608, BS5351, ISO17292, DIN etc.

Our products can widely use in the industry of Petroleum, Natural gas,Chemical, Light, Ore pulp, Electrical, Food, Metallurgy,Coal-to-liquids, long distance pipeline and various industrial facilities.
