    30" 900LB Oil Pipeline Valves A105N Electric Operated ASME B16.5

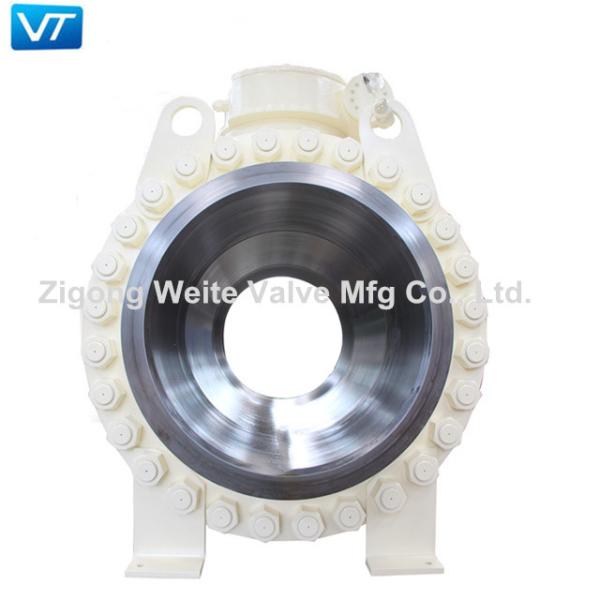

    30'' 900LB Trunnion Mounted Ball Valve Oil Pipeline Valves A105N


    Product Description


    The Forged steel Trunnion ball valves have circular through holes or passages through their axis. It is mainly used for cutting, distributing and changing the flow direction of the medium in the pipeline.


    The Trunnion Mounted ball valve can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium,

    urea and other media.


    TSpecification


    Design standardAPI6D
    Size30''
    Pressure900LB
    Flange Type and DimensionsASME B16.5
    Inspection and TestAPI598
    Applicable Mediumwater, steam, oil, nitric acid, acetic acid, oxidizing medium


    Fireproof Design


    It has been specially tested when an accidental fire or abnormal heating softens and burns the non-metallic valve seat.

    Wide seat supports metal sealing surface to prevent internal leakage under spring load. at the same time,

    In the intermediate flange, the upper and lower parts of the valve stem make metal surface contact, which can also

    Prevent external leakage. Comply with API6FA or API607 requirements.


    Company Profile

    Zigong Weite Valve Mfg Co., Ltd. was established in 2007,we have a plant area of 15,400 m² and is equipped with a technology

    research and development center. we strictly enforces the quality control of ISO9001 , API6D, ASME, B16.34, API608, BS5351,

    SO17292, DIN etc.


    VT quality assurance system is committed to creating zero-leakage valves. Due to our long-term pursuit and control of quality, our

    products have good sealing performance, flexible use and long service life, and have won more recognition from end customers.
